Results Gantt Chart

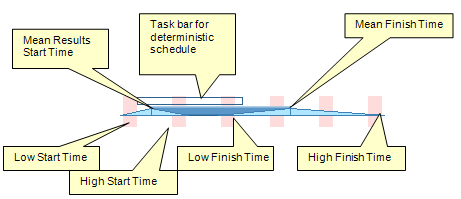

RiskyProject displays the start and finish ranges of each task in the Result Gantt view. The calculated project and baseline schedules are shown in the same Gantt chart. You can use the task bar for deterministic current schedule to compare deterministic and probabilistic schedules.

You can display Result Gantt associated only with low (optimistic) and high (pessimistic) results.

Showing or Hiding Low/High Results

1. Right-click on the chart and a shortcut menu opens.
2. From the shortcut menu, choose one of the following viewing options:
    •  Show Low/High Results
    •  Show Low Results
    • Show High Results
    • Show Current Schedule.
